1. Description

DIHORSE Automatic fiber laser welding machine comes standard with a Raycus Laser source, its service life reaches 100,000h; Additionally, uniform power output and homogeneous intensity distribution guarantee excellent seam qualities and high process stability. The machine can be customized with automatic fixtures, or integrated into assembly lines for mass production.

The 500 W automatic fiber laser welder can be upgraded with larger power options to achieve welding of thicker workpieces.

2. Features

  • Real-time processing display and waveform control functions to achieve ideal welding conditions;
  • Four-axis control system, easy to program, debug and maintain.
  • Smooth and high strength welding seams that do not need any post-processing;
  • Fast speed, more than 5 times the speed of the traditional fiber transmission laser welding machine;
  • Large depth, small taper, high precision, solid welds fully meet the needs of users in different industries;
  • Time splitting or energy splitting, suitable for different processing applications, multi-station processing applications;
  •  Optional robot, boom, CCD camera monitoring system for special welding, precision alignment and real-time monitoring of welding.

3. Parameters

1000W Automatic laser welding  machine



Laser source


Laser power

1000W (1500W/2000W/3000W optional)

Output Power Tunability (%)


Laser head


Laser wavelength


Fiber diameter


Frequency of pulse


Way of working


Electric current


Spot Size


Welding depth


Impulse Width


Cooling system

Water cooling

Water chiller

S&A 1000w

Total power


Ambient Temperature


Relative Humidity


Power supply

AC 220V, 50Hz

Apply materials

SS, CS, Aluminum, Brass

Max thickness 1

3mm SS, 3mm CS

Max thickness 2

0.5mm Aluminum and Brass

4. Main Parts Details

5. Sample Display

6. Application

Sanitary industry: welding of water pipe joints, reducers, tees, valves, and showers.

Glasses industry: precision welding of glasses, such as stainless steel and titanium alloy, and the outer frame.

Hardware industry: impeller, kettle, handle, etc., welding of insulated cups, complex stamping parts and castings.

Automotive industry: engine cylinder head gasket, hydraulic tappet seal welding, spark plug welding, filter welding, etc.

Medical industry: welding of medical instruments, medical equipment, stainless steel seals, structural parts.

Electronics industry: solid-state relay seal welding, welding of connector connectors, welding of metal casings and structural parts such as mobile phones and MP3s. Welding of motor housings and wires, fiber optic connector connectors, etc.

Household hardware, kitchen utensils, stainless steel door handles, electronic components, sensors, watches, precision machinery, communications, handicrafts, and other industries, automotive hydraulic tappets and other high-intensity industry products welding.

7. Package

8. Workshop

9. FAQ

Q1.      How about the wavelength adjustment range of the laser welding machine?


Q2.      What is the power consumption of the welding machine?

           Normally, the power of the laser multiplied by 4.5 is the power consumption of the whole laser welding machine.

Q3.      Is the protective gas necessary?

           Yes, it is. Protective gas must be used to protect and cool the lens and copper nozzle, and to achieve perfect welds;

Q4.      How to maintain water chiller?

          In the summer, fill the chiller with pure water and replace the water once a month; in the winter, add coolant or alcohol, the volume is half of the water  tank; In the extreme cold area, antifreeze should be added;

10.Customer Review

Write a review

Please login or register to review

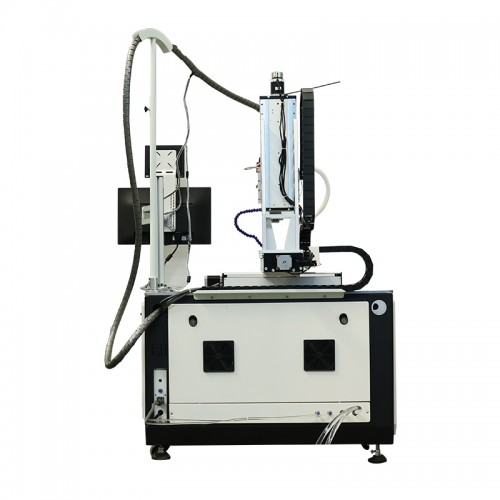

DIHORSE 1k/1.5k/2k/3k Automatic Fiber Laser Welding Machine 300*300mm Working Area with Rotary for Standard Part

  • Brand: DIHORSE LLC
  • Product Code:DH-W1000
  • Availability:In Stock
  • $12,000.00
